J系列和N系列R600a鋁線電機壓縮機技術參數表
TECHNICAL DATASHEET OF J and N Series R600a Aluminum Wire COMPRESSOR（LBP） |
| Compressor |
Displ. |
Cooling |
Motor |
Vol./Fre. |
制冷量Cooling Capacity |
COP |
運行電容
Running Capacitor
(µF) |
電機繞組材料
主相/副相
Material of winding
Main/Aux. |
認證
Certificate
|
| Model |
|
Type |
Type |
|
(W) |
(W/W) |
| 壓縮機型號 |
氣缸容積 |
冷卻方式 |
電機型式 |
電壓/頻率 |
ASHRAE |
CECOMAF |
ASHRAE |
CECOMAF |
| |
(cm3) |
|
|
（V~/Hz） |
(-23.3oC) |
(-25oC) |
(-23.3oC) |
(-25oC) |

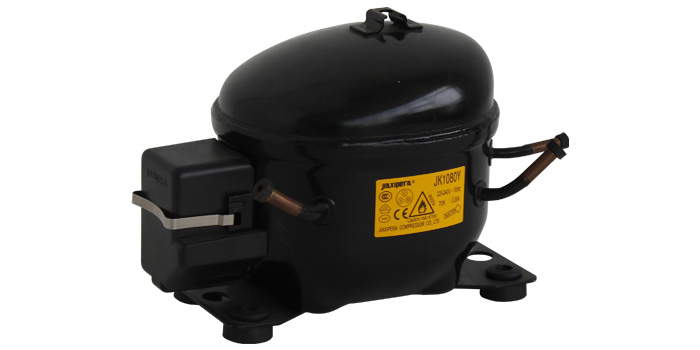

| JK1080Y |
6.02 |
ST |
RSCR |
220-240~/50 |
100 |
75 |
1.55 |
1.21 |
3.0 |
Al/Al |
VDE,CCC |
| JK1110Y |
7.04 |
ST |
RSCR |
220-240~/50 |
118 |
89 |
1.55 |
1.21 |
4.0 |
Al/Al |
VDE,CCC |
| JK1111HY |
6.49 |
ST |
RSCR |
115~/60 |
128 |
96 |
1.60 |
1.25 |
8.0 |
|
UL |
| JK1090FY |
6.49 |
ST |
RSCR |
100~/50 |
110 |
83 |
1.58 |
1.23 |
/ |
|
|
| 100~/60 |
128 |
96 |
1.60 |
1.25 |
/ |
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
Notes:
|
(1) All data is subject to change without notice.
表列參數如有更改恕不通知。 |
Test conditions測試工況: |
(oC) |
|
|
|
| |
(2) ST--自然冷卻Static colling； F--風冷Fan |
|
|
ASHRAE |
CECOMAF |
|
|
| |
|
|
|
|
|
蒸發溫度Evaporating temp. |
-23.3 |
-25 |
|
|
| |
|
|
|
|
|
冷凝溫度Condensing temp. |
54.4 |
55 |
|
|
| |
|
|
|
|
|
過冷溫度Subcooling temp. |
32.2 |
55 |
|
|
| |
|
|
|
|
|
吸氣溫度Suction temp. |
32.2 |
32 |
|
|
| |
|
|
|
|
|
環境溫度Ambient temp. |
32.2 |
32 |
|
